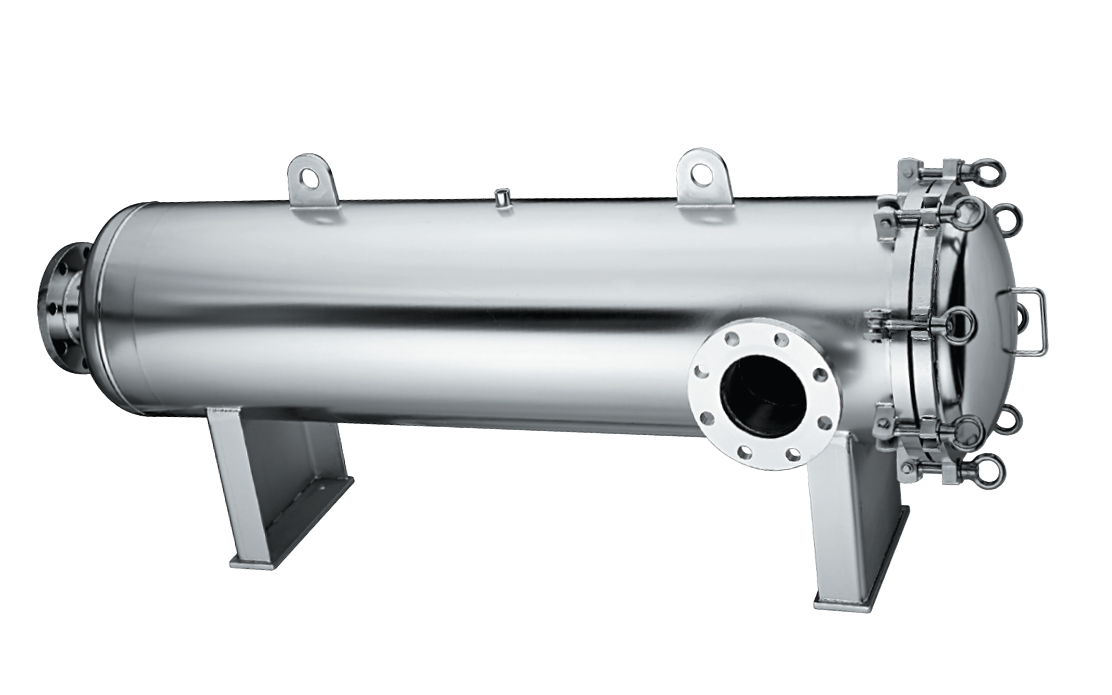

IHF Industrial High Flow Housings
High Capacity Performance
Industrial high flow housings are designed to deliver reliable filtration performance in demanding industrial and commercial systems. The swing lid with eyebolt closure provides secure sealing, while larger models include a davit arm to simplify safe access during maintenance. Engineered for flexibility, these housings accommodate a wide range of high flow elements and flow path configurations to match system requirements.
BENEFITS
- Swing lid with eyebolt closure ensures dependable sealing
- Davit arm standard on larger sizes for safer, easier servicing
- Accepts 40” or 60” high flow elements
- Configurable inside-out or outside-in flow path designs
- Compatible with elements from multiple manufacturers (consult prior to ordering)
- Available in carbon steel, 304SS, 316SS, or 316LSS
- Sizes accommodate 1–19 elements, with larger options available
- 150 psi design pressure and 300°F max operating temperature
- Standard differential, drain, and vent connections
- EPDM O-ring seal for reliable leak protection
- Durable finishes: epoxy-coated carbon steel or electropolished stainless
