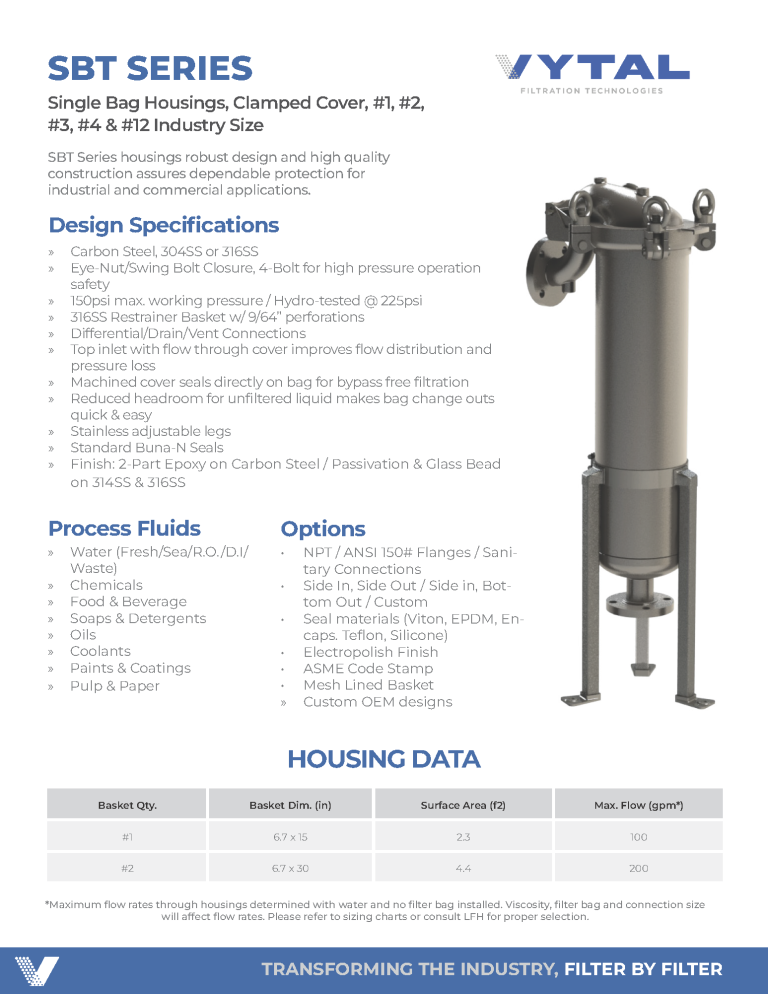

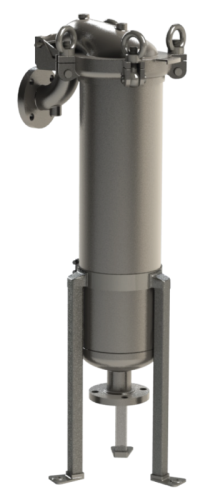

SBT Single Bag Top Flow Housings
Dependable Industrial Filtration
The Single Bag Top Flow (SBT) housing is designed to deliver reliable, bypass-free filtration for demanding industrial and commercial environments. Its top-flow configuration improves flow distribution while minimizing pressure loss, helping maintain consistent system performance. A machined cover seals directly on the bag to prevent bypass, and the compact headroom design allows for faster, cleaner bag change-outs. Built for durability and safety, SBT housings are available in multiple material options and engineered for high-pressure operation.
BENEFITS
- Top-flow inlet design improves flow distribution and reduces pressure loss
- Machined cover seal ensures bypass-free filtration
- Compact headroom design allows quick, easy bag change-outs
- Available in carbon steel, 304SS, or 316SS for application flexibility
- Eye-nut/swing bolt closure with 4-bolt safety design for high-pressure operation
- Rated to 150 psi working pressure, hydro-tested to 225 psi
- 316SS restrainer basket with 9/64″ perforations for strong bag support
- Integrated differential, drain, and vent connections
- Stainless adjustable legs for stable installation
- Corrosion-resistant finishes: epoxy-coated carbon steel or passivated/glass bead stainless steel
